Ultra Soft LED Curtain Video Display FLC Series

1. The first flexible LED display in the world.

2. Adopts quality DFR velvet drapery, unique design and stable performance.

3. One of the most well-known products since 2006, soft like a curtain and very suitable for advertising, stage background, live shows, concerts, nightclub and other entertainment occasions.

Inquiry now

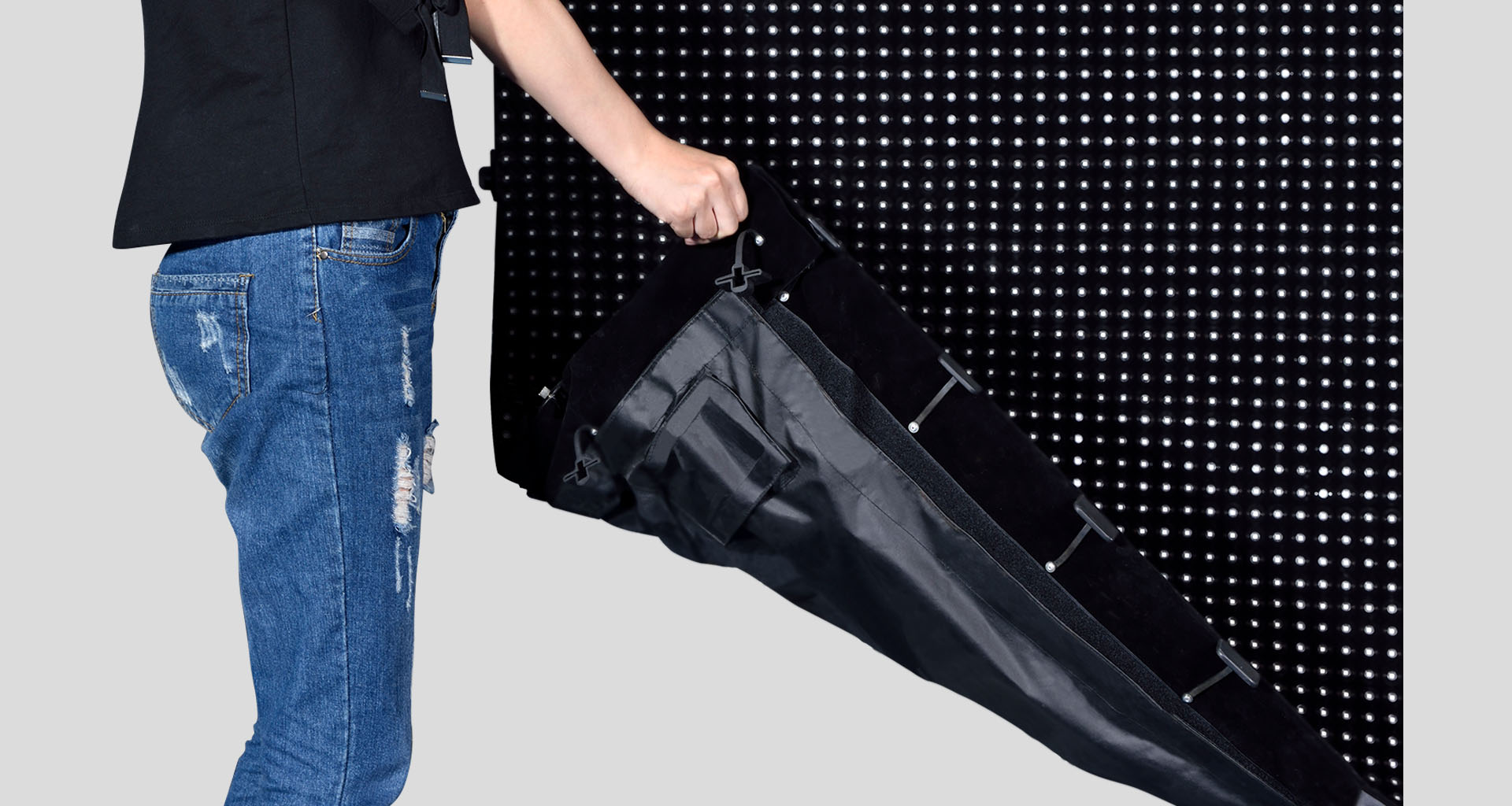

Ultra Soft Like LED Cloth

Body Materials are made by DFR velvet drapery, foldable like a cloth.

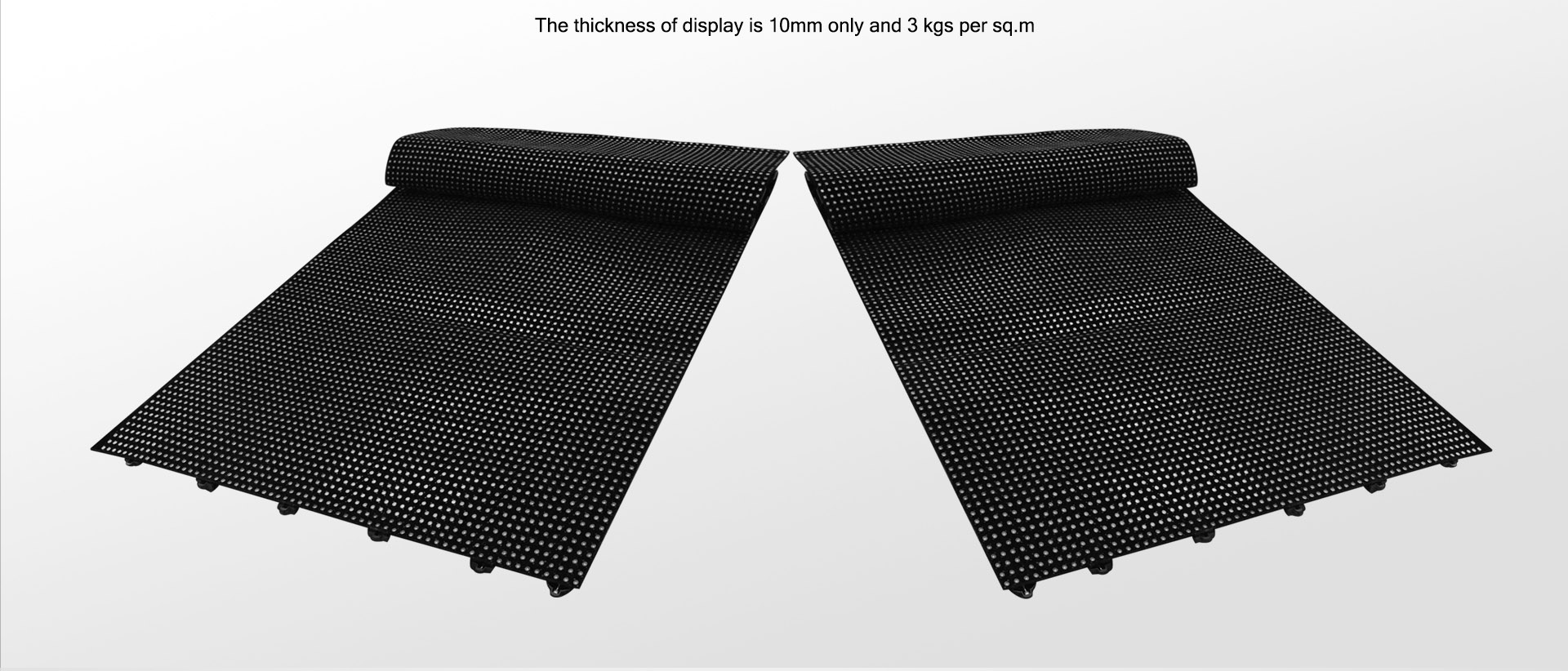

Super Thin And Light Weight

Customized Sizes & Shapes

Pixel pithes can be customized and different shapes are available, such as round, circle, triangle, cone etc.

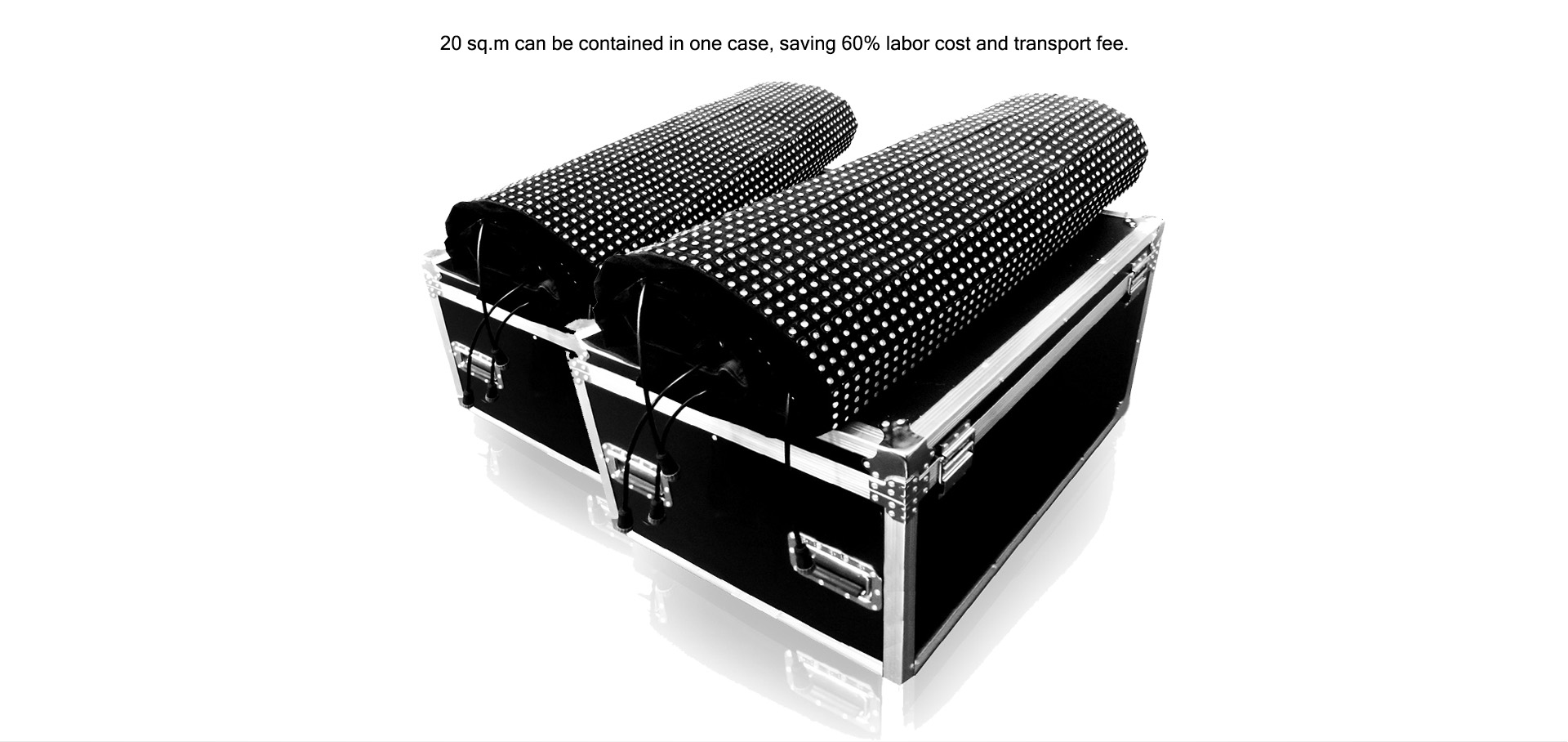

Small Volumn For Easy Transportation

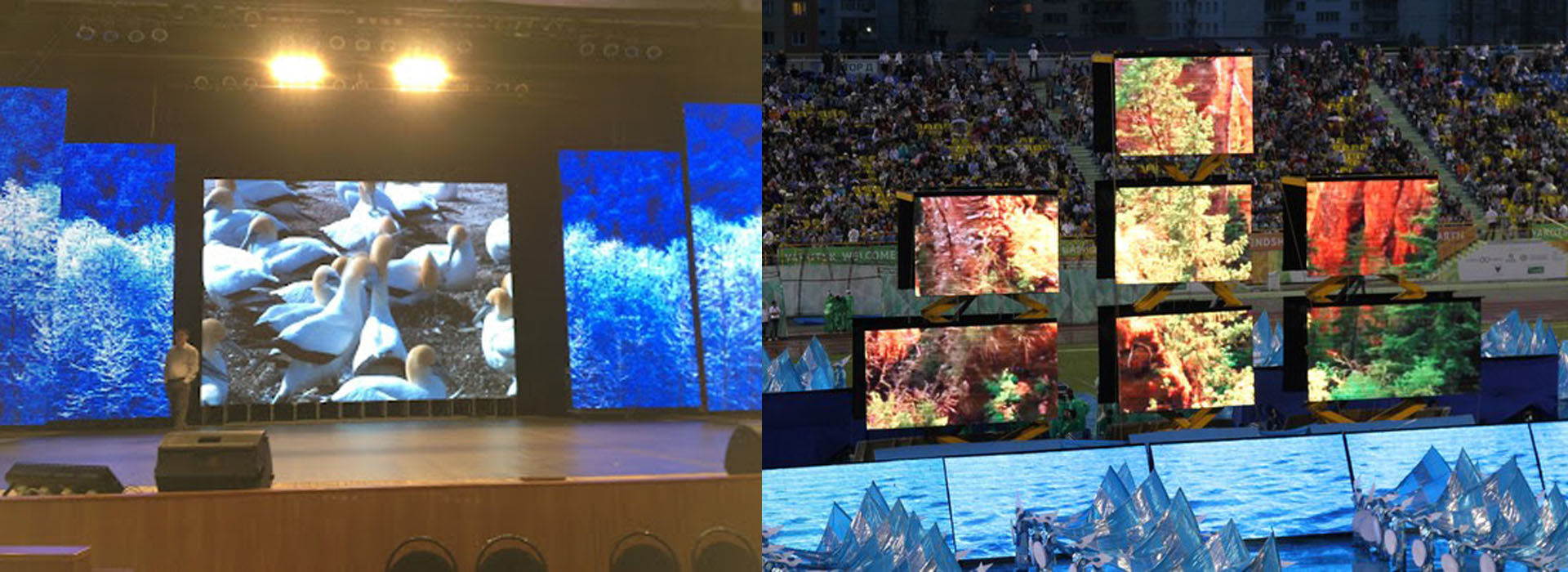

Appilcations

Specification

Model	FLC-3000	FLC-2500	FLC-1600	FLC-1000	FLC-700	FLC-400	FLC-200	FLC-200A	FLC-100
Pixel Pitch (mm)	18.25	20	25	30	37.5	50	75	75	100
Pixel Density (pixel/㎡)	3002	2500	1600	1111	711	400	176	176	100
Pixel Configuration	RGB 3-IN-1 SMD LED							2R2G2B DIP	RGB 3-IN-1
Pixel Configuration	RGB 3-IN-1 SMD LED							2R2G2B DIP	SMD LED
Brightness (Nits)	3080	2700	1730	1200	770	220	86	265	55
Optimal Visual Distance (m)	12	15	18	22	28	37	55	55	75
Recommend Size (W*H)	1168*2336	1280*2560	1600*2400	1440*2400	1200*2400	1600*2400	2400*2400	2400*2400	3200*3200
Size can be customized (mm)	1168*2336	1280*2560	1600*2400	1440*2400	1200*2400	1600*2400	2400*2400	2400*2400	3200*3200
Max Power Consumption (w/㎡)	78	68	45	30	20	12	5	20	3
Average Power Consumption (w/㎡)	26	23	15	10	7	4	2	7	1
Weight (kgs/㎡)	9	8.2	7	5.5	4.3	2.7	2.5	3.2	2.1
Power Input	100V ~ 240V AC, 50/60Hz
Gray Scale (bit)	12
Refresh Rate (Hz)	1920
View Angle	Horizontal:120°; Vertical:120°
Drive Mode	Constant Current
Signal Input	AV, S-Video, VGA, CVBS, HDMI, DVI, etc.
Body Material	DFR velvet drapery
IP Rating	IP 54
Operating Temp./Humidity	-40℃ ~ +60℃/10%-90% RH
Installation	Hang
Package	Flight Case (Carton optional)
Certificates	CE, FCC, RoHS
