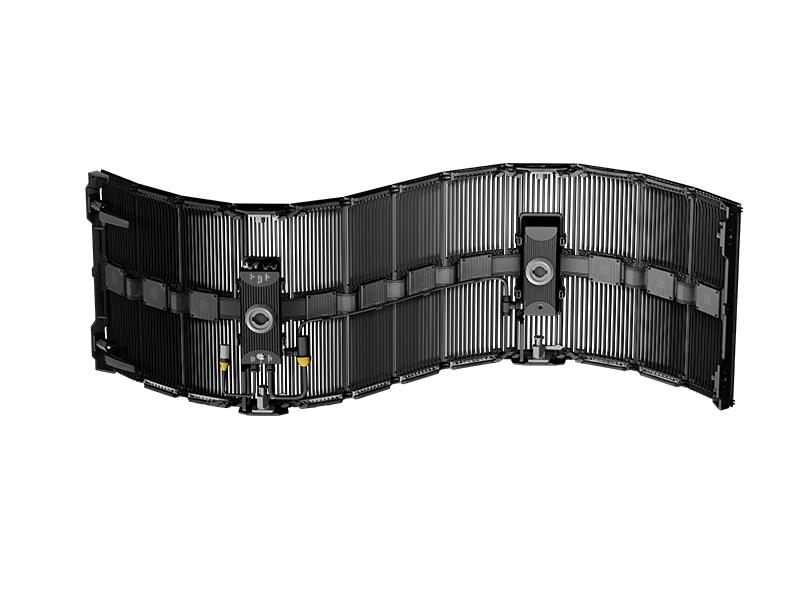

Outdoor High Transparency Flexible LED Screen Travi

1. Travi is the fourth generation of HUASUNY’s flexible LED display.

2. The epitome of strength and flexibility
3. Designed to be versatile, allowing you to create any display you can imagine.

4. IP65 for all indoor and outdoors applications.

Inquiry now

Flexibility Meets Rigidity and Delivers an Unparalleled Viewing Experience.

With its modular design and patented hinge technology, Travi flexible LED screen strikes the perfect balance between flexibility and rigidity. It is flexible when removing the carbon fiber rods and offer exceptional performance, especially for outdoor applications.

Light Weight, Thin, Flexible, and Transparent – All in one

Travi's patented hinge technology allows its modules to bend forward up to 50 degrees and backward up to 90 degrees, providing unparalleled flexibility. With its high-strength alloy material and aluminum die-casting frame, weight is just 16kg/sq.m. Travi is built to withstand up to 500kg of force while maintaining its transparency of 55%-75%.

Beauty Without Bounds. Designed To Be Versatile

Travi is a work of art that can be installed horizontally, vertically, or ground stack.

Its unique ability to create large flat screens or innovative shapes without the need for special locking mechanisms.

Seamless and Flawless

Travi's mortise and tenon joint system and magnet-assisted assembly provide quick and precise alignment, ensuring a smooth and seamless display that is second to none.Its design ensures that the LED display modules are protected and seamlessly integrated, providing a viewing experience that is both immersive and captivating.

Waterproof, Transparent, and Unbeatable

Travi's hollow module design provides exceptional wind resistance and transparency of 55%-80%. With an IP65 waterproof rating, it is the ultimate screen for any outdoor setting.

Maintenance Made Effortless

Travi's front and back maintenance design ensures that display modules can be quickly and easily replaced or repaired, reducing downtime and maintenance costs.

Specification

Model	Travi-6	Travi-8	Travi-10
Pixel pitch	6.9mm	8.9mm	10.4mm
Module size (mm)	500x125mm	500x125mm	500x125mm
Pixel density (pixels/m²)	20736	12544	9216
Panel size（WxHxT） Sizes can be customized	500x1500x70	500x1500x70	500x1500x70
Panel resolution	72x216Pixels	56x168Pixels	48x144Pixels
Brightness	4000nits	4000nits	4000nits
Viewangle（Hor/Vert）	160°/140°
Optimal visual distance	8m	9m	10m
Refreshrate	3840Hz	3840Hz	3840Hz
Gray scale	14bit	14bit	14bit
Transparency	40%	55%	60%
Contrast	5000:1
Scan model	1/6	1/4	1/3
Power consumption（max/avg）	720/240 W/m²
Power input	100~240VAC/50~60Hz
Working Voltage	DC 4.6V
Signal input	AV,S-Video,VGA,CVBS,HDMI,DVI
IP rating	IP65
Body material	PC+ fiber, Aluminum alloy
Panel weight	11.5kg	10.5kg	9.5kg
Max stacking	10 panels
Max hanging	8 panels
Lifespan	≥100,000 H
Operating temperature	-20~+50℃
Maintenance	Front & Back
Certification	CE,FCC,RoHS
