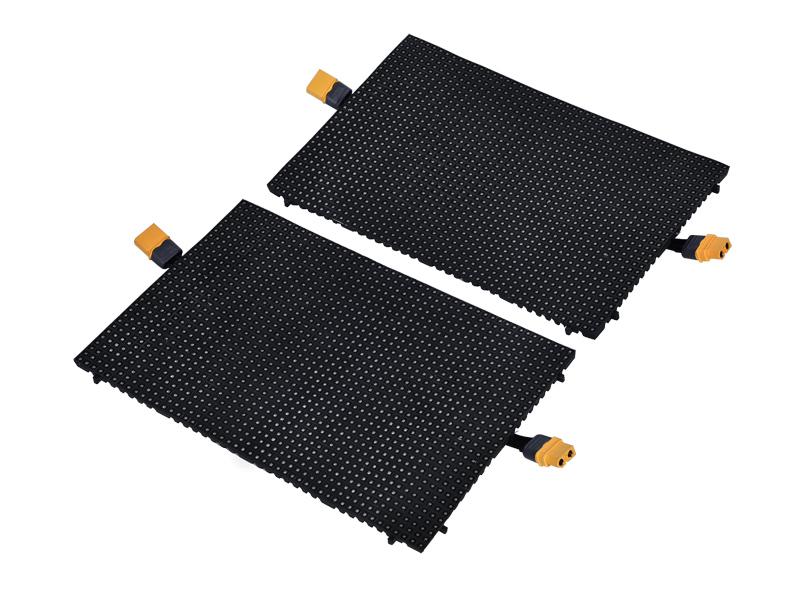

Ultra Soft LED Screen Ribbon Series

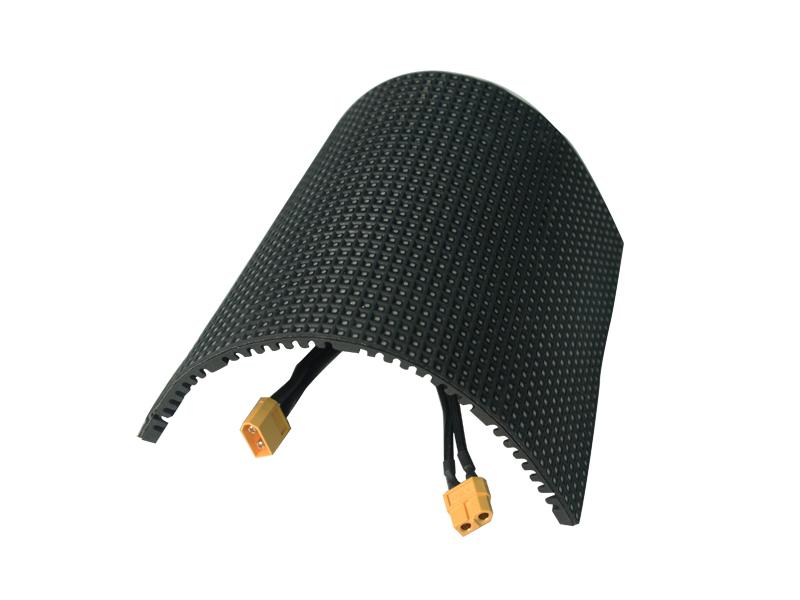

1. Made by soft PCB and rubber material, it’s soft enough to make different shapes for any creative applications.

2.With 5mm thickness ,magnetic connection,they can be fixed according to the frame structures,such as round, circle ,cylinder,etc.

3. Integrated seamlessly with a variety of other video products to reduce installation expenses and improve aesthetics ,it's lighter and thinner than traditional LED display.

Inquiry now

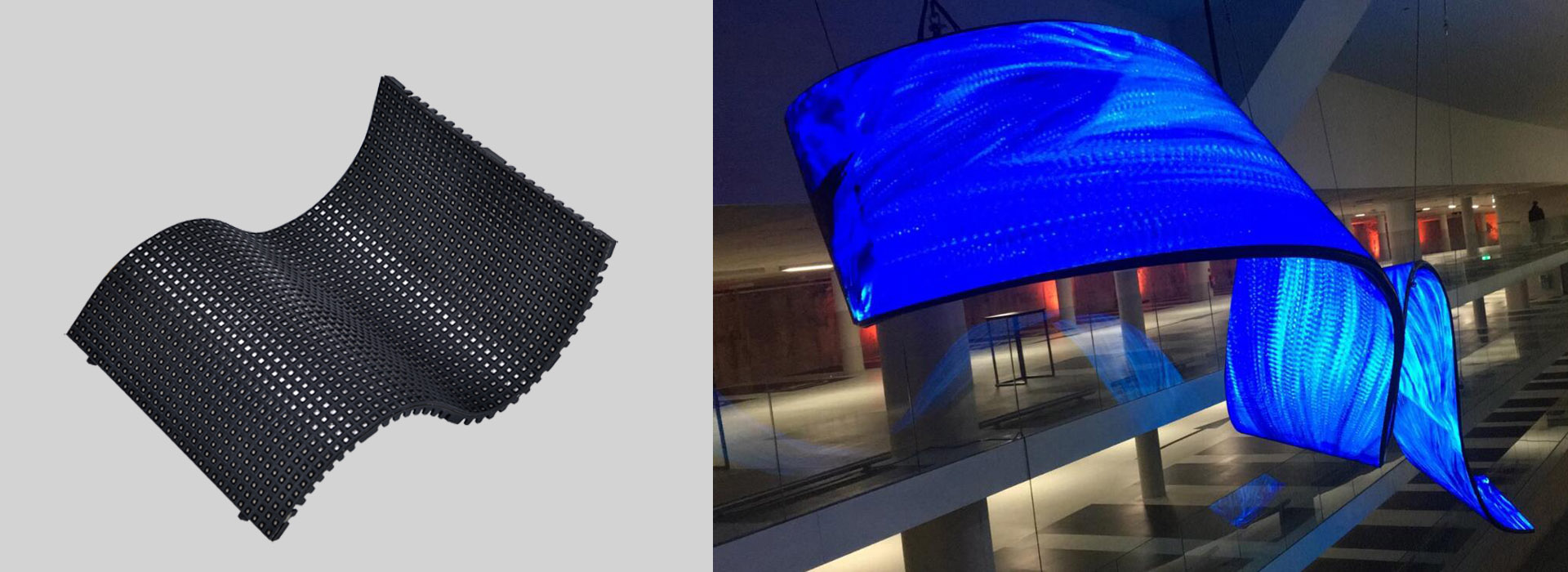

Customized Shapes LED Screen

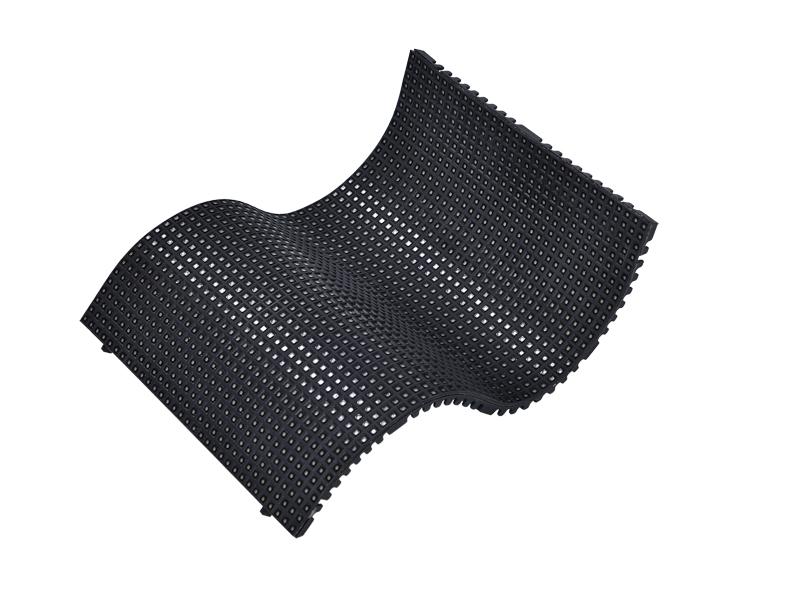

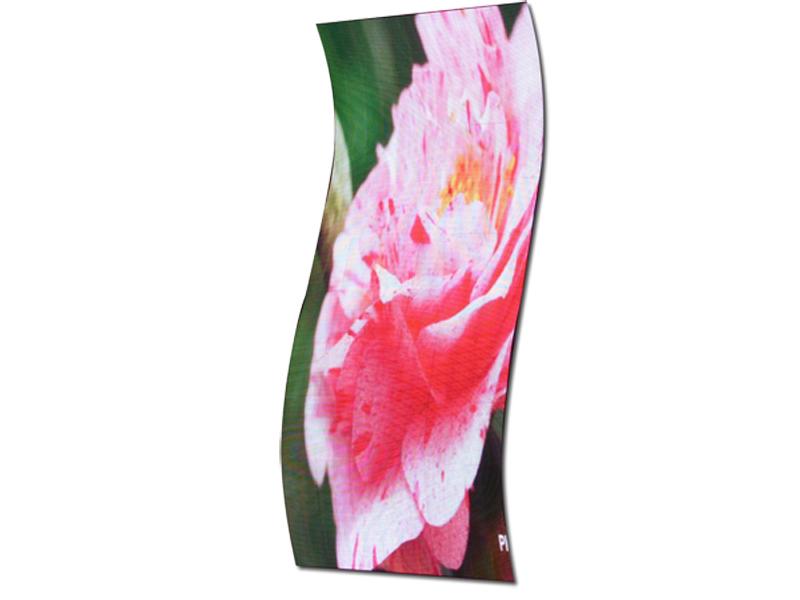

Extremely Soft, Flexible Appilications

Slim and light weight, magnetic modules can stick to customized frame and fit to any shape design.

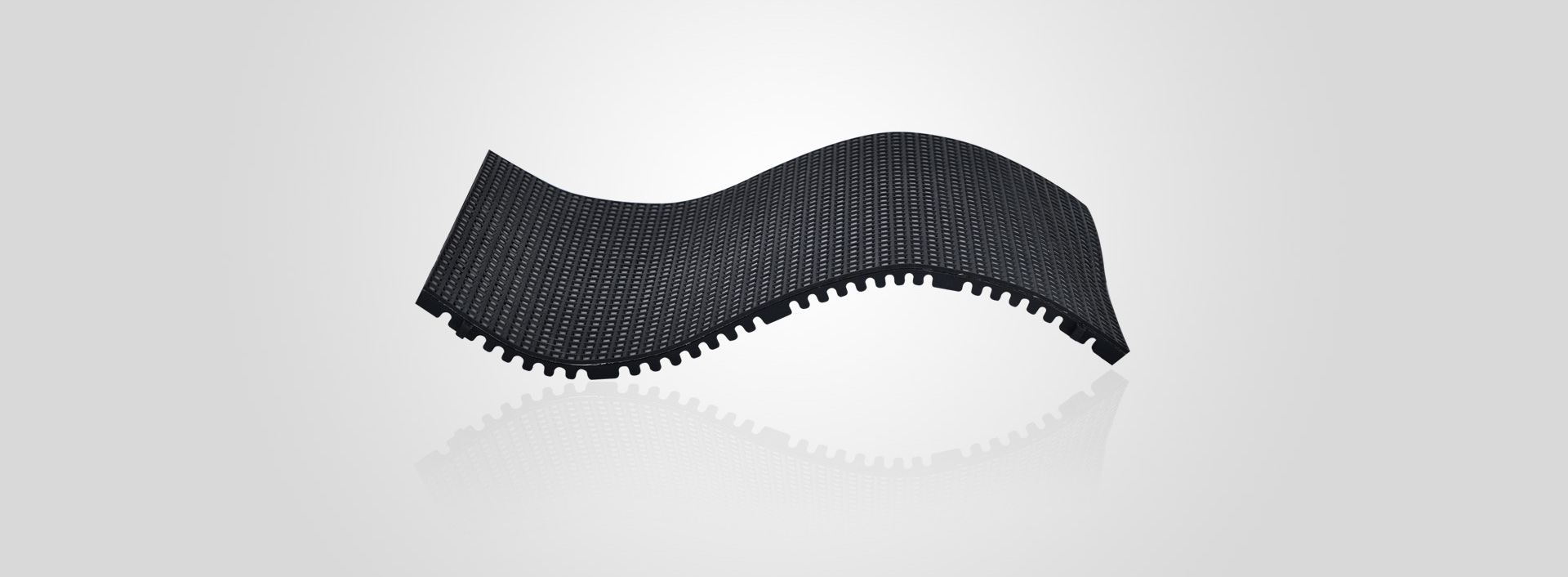

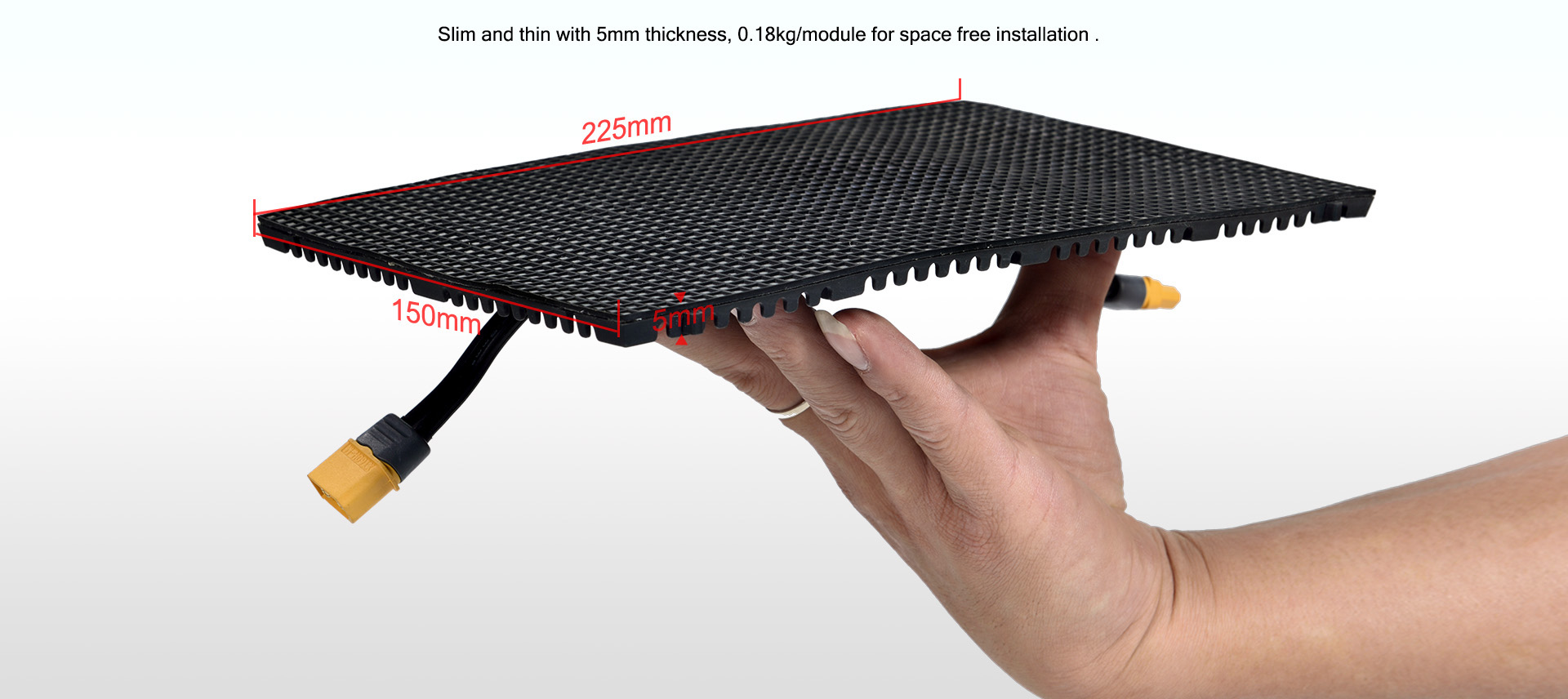

Light Weight, Space Efficiency

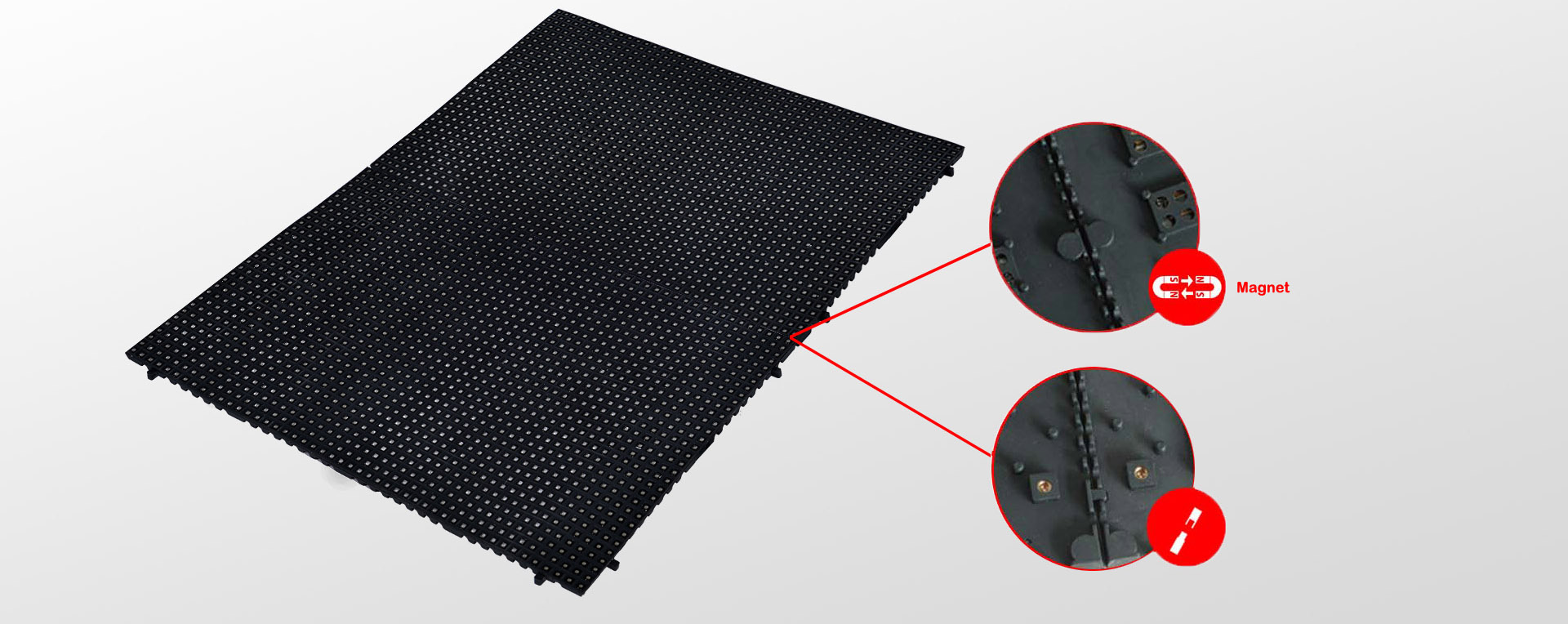

Magnetic Self-Locks Seamless Splice

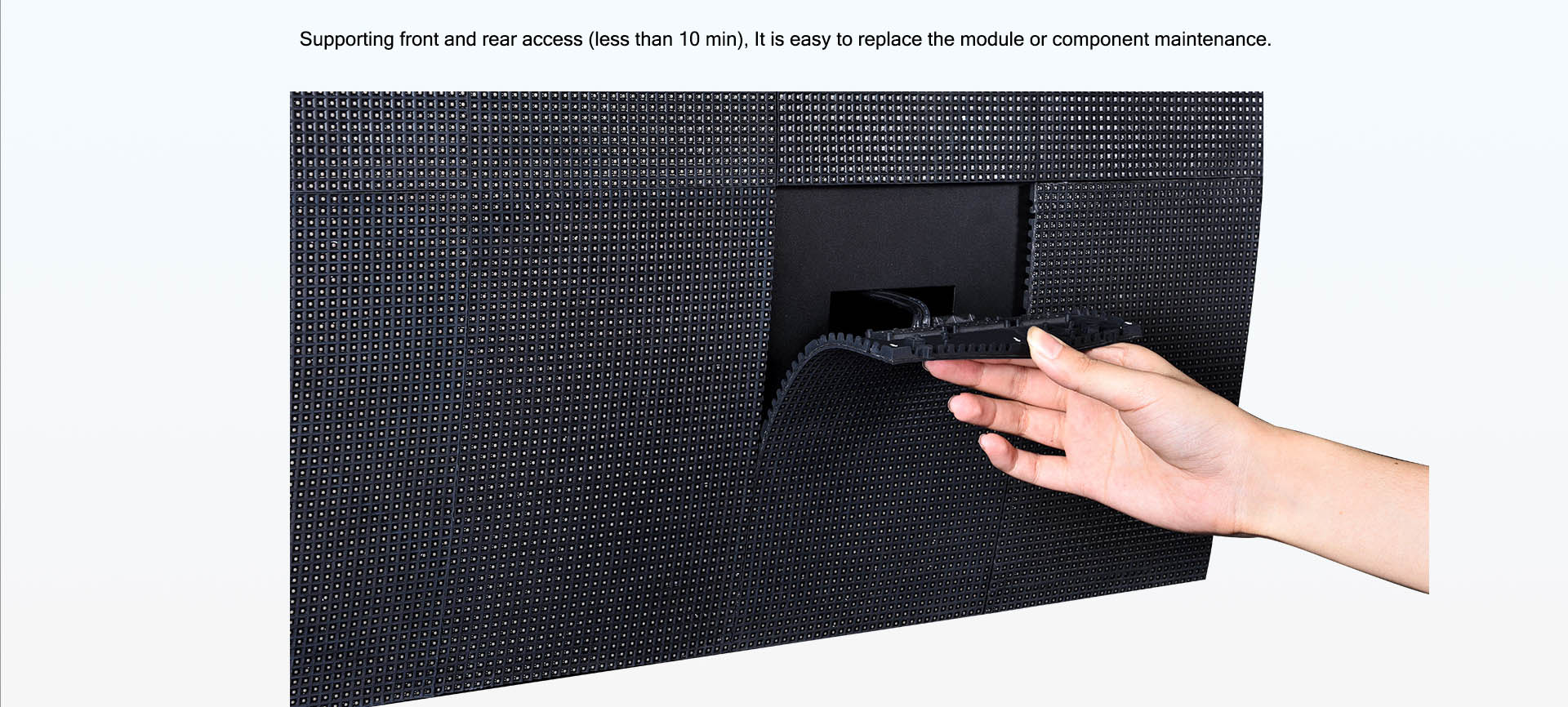

Easy Maintenance

Specification

P Series (Without Flash)						PF Series (With Flash)
Model	P 1.25	P 1.5	P 1.8	P 2.0	P 2.5	PF 1.25	PF 1.5	PF 1.8
Pixel pitch	1.25mm	1.53mm	1.86mm	2.0mm	2.5mm	1.25mm	1.5mm	1.8mm
LED	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020	SMD1010	SMD1212	SMD1212
Panel size	320*160mm 240x120mm					250x125mm
Pixel density (Pixels/m²)	640,000	422,500	288,907	250,000	160,000	640,000	409,600	295,936
Module resolution	256*128 Pixels	208*104 Pixels	172*86 Pixels	160*80 Pixels	128*64 Pixels	200*100 Pixels	160*80 Pixels	136*68 Pixels
LED Board with flash	NO					YES
Scan model	1/64	1/52	1/43	1/40	1/32	1/25	1/20	1/17
Brightness	800nit	1000nit	1000nit	1000nit	1000nit	800nits	1000nits	1000nits
Optimal visual distance	1.3m	1.6m	1.9m	2m	2.5m	1.3m	1.6m	1.9m
View angle（Hor/Vert）	160°/140°					160°/140°
Refresh rate	3840Hz					7680HZ
Gray scale	13bit	13bit	14bit	14bit	14bit	14bit	14bit	14bit
Power consumption （max/avg）	680 / 225 W/m²
Working Voltage	DC 4.6V
Signal input	AV,S-Video,VGA,CVBS,HDMI,DVI
Control system	Nova
IP rating	IP20
Panel weight	310g
Life span	≥50000 H
Operating temperature	-20~+50℃
Maintenance	Front
